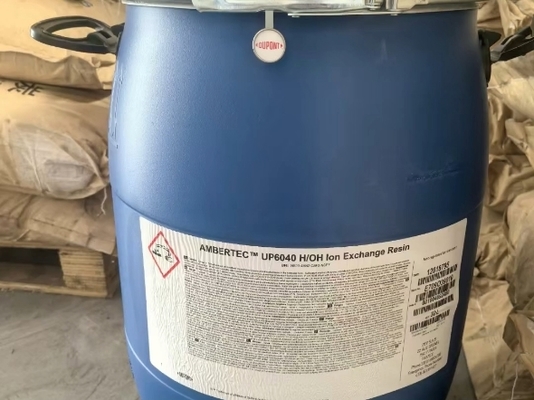

DuPont™ AmberTec™ UP6040 H/OH Ion Exchange Resin For Ultrapure Water Applications
Подробная информация о продукте:
| Место происхождения: | КИТАЙ |
| Фирменное наименование: | Dupont |
| Сертификация: | ISO9001 |
| Номер модели: | Dupont ™ Ambertec ™ UP6040 H/OH |
| Документ: | IER-AmberTec-UP6040-H-OH-PD...en.pdf |
Оплата и доставка Условия:
| Количество мин заказа: | 1 шт |
|---|---|
| Цена: | обсуждаемый |
| Упаковывая детали: | Стандартная экспортная упаковка |
| Время доставки: | 5-8 рабочих дней |
| Условия оплаты: | T/T. |
| Поставка способности: | 60000 единиц в месяц |
|
Подробная информация |
|||
| Удельное сопротивление (upw полоскание, 10 минут): | ≥ 18 МОм · см | Удельное сопротивление (соляная заражение, 10 минут): | ≥ 18 МОм · см |
|---|---|---|---|
| ΔToc (2H00 промывка): | ≤ 3 ppb c | Основные приложения: | Ультрапирные воды |
| Функциональная группа катионной смолы: | Сульфоновая кислота | Катионовая общая обменная мощность: | ≥ 2,00 уравнения/л |
Характер продукции
1. Product Overview
AmberTec™ UP6040 H/OH is a non-separable, uniform particle size mixed bed ion exchange resin designed for final polishing in ultrapure water (UPW) systems in the semiconductor industry and other demanding applications. It achieves extremely low leakage of ionic species, silica, boron, total organic carbon (TOC), and sub-micron particles. In well-designed UPW systems, it delivers water with 18.2 MΩ·cm resistivity and TOC levels below 1 ppb.
Key Features:
-
Non-separable uniform particle size
-
High resistivity, cleanliness, and purity
Key Applications:
-
Ultrapure water for semiconductor manufacturing and similar high-purity applications
2. Typical Properties
Physical and Chemical Properties:
| Property | Cation Resin | Anion Resin |
|---|---|---|
| Copolymer | Styrene-divinylbenzene | Styrene-divinylbenzene |
| Matrix | Gel | Gel |
| Type | Strong acid cation | Strong base anion, Type I |
| Functional Group | Sulfonic acid | Trimethylammonium |
| Physical Form | Dark amber translucent spherical beads | Yellow translucent spherical beads |
| Ionic Form as Shipped | H⁺ | OH⁻ |
| Total Exchange Capacity | ≥ 2.00 eq/L | ≥ 1.10 eq/L |
| Water Retention Capacity | 45 – 51% | 54 – 60% |
| Ionic Conversion (H⁺) | ≥ 99% | — |
| Ionic Conversion (OH⁻) | — | ≥ 95.0% |
| Ionic Conversion (CO₃²⁻) | — | ≤ 5.0% |
| Ionic Conversion (Cl⁻) | — | ≤ 0.5% |
Particle Size Distribution:
| Parameter | Cation Resin | Anion Resin |
|---|---|---|
| Particle Diameter | 525 ± 50 μm | 630 ± 50 μm |
| Uniformity Coefficient | ≤ 1.20 | ≤ 1.20 |
| < 300 μm | ≤ 0.1% | — |
| < 425 μm | — | ≤ 0.5% |
| > 850 μm | ≤ 5.0% | — |
| > 1180 μm | — | ≤ 2.0% |
ℹ For additional particle size information, refer to Document No.: 45-D00954-en.
3. Performance and Operating Conditions
Ultrapure Water Quality Test Results:
-
Resistivity (UPW Rinse, 10-min): ≥ 18 MΩ·cm
-
Resistivity (Salt Challenge, 10-min): ≥ 18 MΩ·cm
-
ΔTOC (2h00 Rinse): ≤ 3 ppb C
Recommended Operating Conditions:
-
Temperature Range: 15 – 25°C (59 – 77°F)
-
pH Range (Stable): 0 – 14
-
Shipping Weight: 710 g/L
⚠ Operation at elevated temperatures (e.g., >60–70°C) may impact system purity and resin life. Consult DuPont technical representatives for details.
4. Hydraulic Characteristics
-
Pressure Drop: Estimated pressure drop as a function of service flow rate and temperature is provided in Figure 1 (refer to original document for detailed curves).
-
Rinse Performance: Typical resistivity and TOC rinse curves as a function of rinse time are shown in Figure 2.
5. Quality Assurance and Safety
-
Quality Assurance: All batches are tested for resistivity rinse, TOC, and kinetic performance to meet stringent UPW requirements.
-
WARNING: Strong oxidizing agents (e.g., nitric acid) may attack the resin under certain conditions, leading to degradation or violent reactions. Consult professionals before use.
-
Users should review manufacturing processes and applications from health, safety, and environmental perspectives.
-
Refer to the latest Safety Data Sheet (SDS) before use and ensure compliance with local regulations.
Users should review manufacturing processes and applications from health, safety, and environmental perspectives. Refer to the latest Safety Data Sheet (SDS) before use and ensure compliance with local regulations.
