DuPont™ AmberLite™ HPR550 OH For Condensate Polishing And Mixed Bed Demineralization Applications
Подробная информация о продукте:
| Место происхождения: | КИТАЙ |
| Фирменное наименование: | Dupont |
| Сертификация: | ISO9001 |
| Номер модели: | Dupont ™ Amberlite ™ HPR550 OH |
| Документ: | IER-AmberLite-HPR550-OH-PDS...en.pdf |
Оплата и доставка Условия:
| Количество мин заказа: | 1 шт |
|---|---|
| Цена: | обсуждаемый |

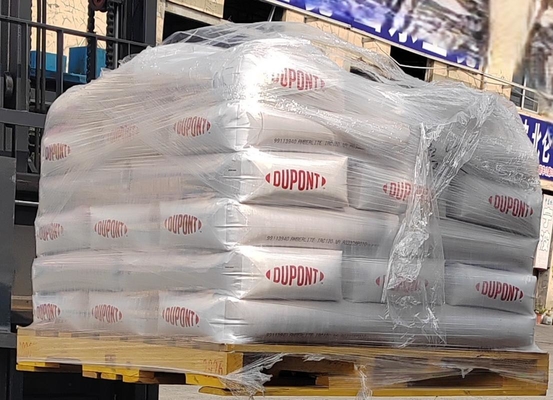

| Упаковывая детали: | Стандартная экспортная упаковка |
| Время доставки: | 5-8 рабочих дней |
| Условия оплаты: | T/T. |
| Поставка способности: | 60000 единиц в месяц |
|
Подробная информация |
|||
| Диаметр частицы продукта: | 590 ± 50 мкм | Коэффициент единообразия продукта: | ≤ 1.10 |
|---|---|---|---|
| Пропорция> 200 г/бусинка: | ≥ 95% | Отек (Cl⁻ → OH⁻): | ≤ 25% |
| Диапазон pH продукта (стабильная): | 0-14 | применение продукта: | Полировка конденсата и применение деминерализации смешанной кровати |
Характер продукции
Product Description
DuPont™ AmberLite™ HPR550 OH Ion Exchange Resin is a premium-quality, high-capacity resin designed specifically for use in nuclear condensate polishing mixed beds when the highest resin purity and water quality are required.
This resin provides exceptional bead integrity and rapid exchange kinetics due to its small average particle size, making it ideally suited to the high flow rate demands commonly encountered in power plant condensate polishing systems. The bead size uniformity and distinguishable light color are tailored to complement the larger, denser, cationic, gel AmberLite™ HPR650 H Ion Exchange Resin. The color distinction between this pair of resins allows easy visual confirmation of separation following backwash. Together, these resins offer exceptional separation in mixed beds, which, combined with excellent water quality and resin purity, has made them known throughout the industry as a premium mixed bed pairing.
Resin Pairings
-
Recommended Pairing:
-
AmberLite™ HPR650 H Ion Exchange Resin (gel)
-
-
Additional Options:
-
AmberLite™ HPR1600 H Ion Exchange Resin (gel)
-
AmberLite™ HPR2000 H Ion Exchange Resin (macroporous) – for external regeneration systems
-
Applications
-
Mixed bed condensate polishing in PWR nuclear power plants
-
Mixed bed condensate polishing in fossil fuel power plants
-
Mixed bed polishing in industrial demineralization
-
Demineralization
-
Ideal when treating water with:
-
High percentage of silica
-
-
When the treatment goal is:
-
Removal of strong and weak acids
-
Lowest silica leakage
-
-
Single bed industrial demineralization requiring high water purity
-
Historical Reference
AmberLite™ HPR550 OH Ion Exchange Resin has previously been sold as DOWEX MONOSPHERE™ 550A (OH) Ion Exchange Resin.
Typical Properties
| Physical Properties | |
|---|---|
| Copolymer | Styrene-divinylbenzene |
| Matrix | Gel |
| Type | Strong base anion |
| Functional Group | Trimethylammonium |
| Physical Form | White to yellow, translucent, spherical beads |
| Chemical Properties | |
|---|---|
| Ionic Form as Shipped | OH⁻ |
| Total Exchange Capacity | ≥ 1.1 eq/L (OH⁻ form) |
| Water Retention Capacity | 55.0 – 65.0% (OH⁻ form) |
| Ionic Conversion: | |
| - OH⁻ | ≥ 95% |
| - CO₃²⁻ | ≤ 5% |
| - Cl⁻ | ≤ 0.5% |
| Particle Size $ | |
|---|---|
| Particle Diameter | 590 ± 50 μm |
| Uniformity Coefficient | ≤ 1.10 |
| < 300 μm | ≤ 0.5% |
| > 850 μm | ≤ 1.0% |
| Purity (dry basis) | |
|---|---|
| Metals: | |
| - Na (Sodium) | ≤ 50 mg/kg |
| - K (Potassium) | ≤ 50 mg/kg |
| - Fe (Iron) | ≤ 50 mg/kg |
| - Cu (Copper) | ≤ 10 mg/kg |
| - Ca (Calcium) | ≤ 50 mg/kg |
| - Mg (Magnesium) | ≤ 50 mg/kg |
| - Al (Aluminum) | ≤ 50 mg/kg |
| - Heavy Metals (as Pb) | ≤ 10 mg/kg |
| Stability | |
|---|---|
| Whole Uncracked Beads | ≥ 95% |
| Friability: | |
| - Average | ≥ 350 g/bead |
| - Proportion > 200 g/bead | ≥ 95% |
| Swelling (Cl⁻ → OH⁻) | ≤ 25% |
| Density | |
|---|---|
| Particle Density | 1.08 g/mL |
| Shipping Weight | 660 g/L |
$ For additional particle size information, please refer to the Particle Size Distribution Cross Reference Chart (Form No. 45-D00954-en).
Temperature Range (OH⁻ form) ⁺ 5 – 100°C (41 – 212°F)
pH Range (Stable) 0 – 14
⁺ Operating at elevated temperatures, for example above 60 – 70°C (140 – 158°F), may impact the purity of the loop and resin life. Contact our technical representative for details.
For additional information regarding recommended minimum bed depth, operating conditions, and regeneration conditions for mixed beds (Form No. 45-D01127-en) or separate beds (Form No. 45-D01131-en) in water treatment, please refer to our Tech Facts.
