50 TPH High-performance, Skid-mounted Ultrafiltration System For Industrial RO Pretreatment
Подробная информация о продукте:
| Место происхождения: | Китай |
| Фирменное наименование: | FG Water Technologies |
| Сертификация: | CE |
| Номер модели: | ФГ-УФ-50 |
Оплата и доставка Условия:
| Количество мин заказа: | 1 единица |
|---|---|
| Цена: | обсуждаемый |
| Упаковывая детали: | Стандартная экспортная упаковка |
| Время доставки: | 15-30 рабочих дней |
| Условия оплаты: | , Т/Т |
|
Подробная информация |
|||
| Модельный код: | ФГ-УФ-50 | Номинальная мощность: | 50 тонн в час (13 200 галлонов в день) |
|---|---|---|---|
| Тип мембраны УФ: | Полые волокна из ПВДФ | Номинальный размер поры: | 00,02 мкм |
| Рабочее давление: | 0,1–0,4 МПа (1–4 бар) | Рабочая температура: | 5–45°C (настраиваемая до 65°C) |
Характер продукции
Skid-Mounted Ultrafiltration System
50 TPH Capacity | SDI ≤3 Output | Fully Automated Operation
Product Overview

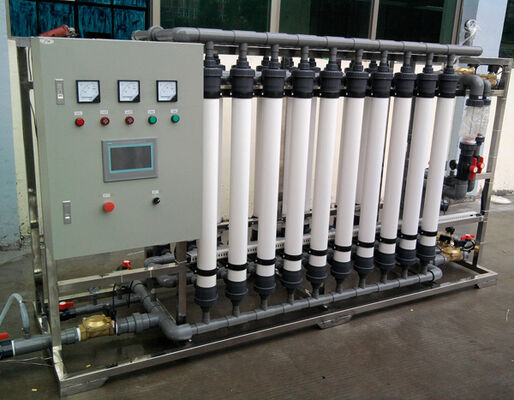

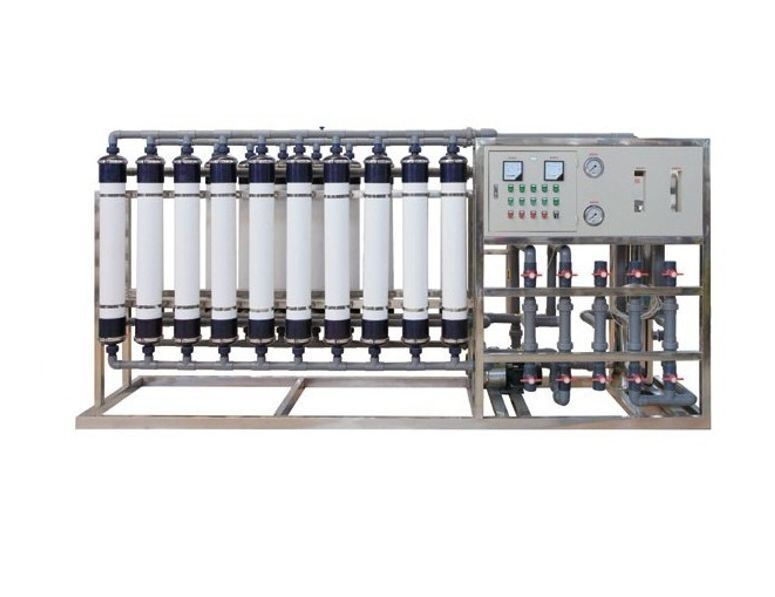

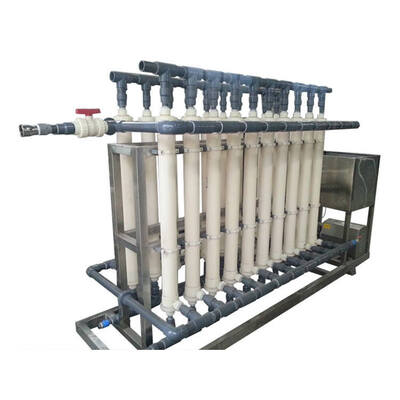

The FG-UF-50 is a high-performance, skid-mounted ultrafiltration system designed for industrial RO pretreatment and process water applications. With a capacity of 50 TPH (≈13,200 GPD), this system features PVDF hollow fiber membranes with 0.02μm nominal pore size, providing reliable removal of suspended solids, bacteria, and colloids.
Key Advantage: Pre-assembled and factory-tested for rapid deployment, reducing installation time by 60% compared to conventional systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Code | FG-UF-50 |
| Nominal Capacity | 50 TPH (13,200 GPD) |
| UF Membrane Type | PVDF Hollow Fiber |
| Nominal Pore Size | 0.02 μm |
| Operating Pressure | 0.1 - 0.4 MPa (1 - 4 bar) |
| Operating Temperature | 5 - 45°C (Customizable to 65°C) |
| SDI Output | ≤3 (Typical ≤2.5) |
| Turbidity Removal | >99.9% (Output <0.1 NTU) |
| System Recovery | 90 - 95% |
| Control System | PLC with HMI, Auto Backwash, CIP System |
| Power Supply | 380V/3Phase/50Hz (Customizable) |
| Dimensions (L×W×H) | 3000 × 1500 × 2000 mm |
| Skid Material | 304 Stainless Steel (316L Optional) |
| Warranty | 3 Years on Membrane, 2 Years on System |
Application Scenarios
The FG-UF-50 is engineered for diverse industrial applications requiring reliable pretreatment and water purification:
RO Pretreatment
Protects RO membranes from fouling by consistently providing feed water with SDI <3. Ideal for seawater desalination and industrial RO systems.
Typical Industries: Power plants, Electronics manufacturing, Food & Beverage
Industrial Process Water
Provides high-quality process water for manufacturing operations. Removes suspended solids, bacteria, and colloids to protect downstream equipment.
Typical Industries: Chemical processing, Metal finishing, Textile manufacturing
Wastewater Reuse
Enables water recycling by treating secondary effluent for reuse applications. Reduces freshwater consumption and discharge costs.
Typical Industries: Industrial parks, Mining operations, Paper mills
Why Choose FG-UF-50?
Our ultrafiltration systems deliver unmatched value through intelligent engineering and customer-focused design:
Proven Reliability
Over 50 units deployed globally with 99.2% operational uptime. Backed by 3-year membrane warranty.
Fast Deployment
Factory assembled and tested. Ready for operation within 2 weeks of delivery. Reduces installation costs by 40%.
Lower TCO
30% lower total cost of ownership compared to European brands. Energy-efficient design reduces operating costs.
Customizable
Adaptable to specific water conditions and space constraints. Optional features: 65°C high-temp version, NSF-certified components.
Customer Testimonials
See what our clients say about the FG-UF-50 system:
Ready to Optimize Your Water Treatment?
Contact our technical team for a customized solution tailored to your specific water quality and operational requirements.
