DuPont™ AmberTec™ UP6150 H/OH Ion Exchange Resin for Ultrapure Water Applications
Подробная информация о продукте:
| Место происхождения: | КИТАЙ |
| Фирменное наименование: | Dupont |
| Сертификация: | ISO9001 |
| Номер модели: | Dupont ™ Ambertec ™ UP6150 H/OH |
| Документ: | IER-AmberTec-UP6150-H-OH-PD...en.pdf |
Оплата и доставка Условия:
| Количество мин заказа: | 1 шт |
|---|---|
| Цена: | обсуждаемый |
| Упаковывая детали: | Стандартная экспортная упаковка |
| Время доставки: | 5-8 рабочих дней |
| Условия оплаты: | T/T. |
| Поставка способности: | 60000 единиц в месяц |
|
Подробная информация |
|||
| Смоловый диапазон температуры: | 15 - 25 ° C (59 - 77 ° F) | Диапазон pH (стабильный): | 0-14 |
|---|---|---|---|
| Вес доставки: | 730 г/л | Основные приложения: | Ультрапирные воды |
| Удельное сопротивление (upw полоскание, 10 минут): | ≥ 18 МОм · см | Удельное сопротивление (соляная заражение, 10 минут): | ≥ 18 МОм · см |
Характер продукции
Final Polishing Mixed Bed Ion Exchange Resin for Ultrapure Water Applications
1. Product Overview
AmberTec™ UP6150 H/OH is a fully regenerated mixed bed ion exchange resin designed for ultrapure water applications. It features separable uniform particle size, high resistivity, and exceptional cleanliness. This resin delivers water quality of 18 MΩ·cm with total organic carbon (TOC) levels below 5 ppb in its first operating cycle as a polishing mixed bed.
Key Applications:
-
Ultrapure water production for low-end semiconductor, display panel, and solar photovoltaic cell industries
2. Typical Properties
Physical and Chemical Properties:
| Property | Cation Resin | Anion Resin |
|---|---|---|
| Copolymer | Styrene-divinylbenzene | Styrene-divinylbenzene |
| Matrix | Gel | Gel |
| Type | Strong acid cation | Strong base anion, Type I |
| Functional Group | Sulfonic acid | Trimethylammonium |

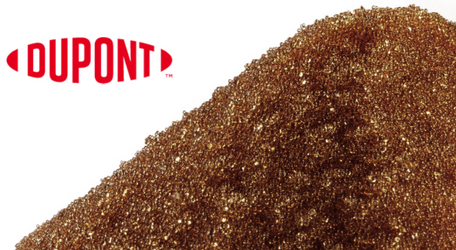

| Physical Form | Dark amber translucent spherical beads | Yellow translucent spherical beads |
| Ionic Form as Shipped | H⁺ | OH⁻ |
| Total Exchange Capacity | ≥ 1.80 eq/L | ≥ 1.00 eq/L |
| Water Retention Capacity | 49 – 55% | 60 – 66% |
| Ionic Conversion (H⁺) | ≥ 99% | — |
| Ionic Conversion (OH⁻) | — | ≥ 95.0% |
| Ionic Conversion (CO₂⁻) | — | ≤ 5.0% |
| Ionic Conversion (Cl⁻) | — | ≤ 0.5% |
Particle Size Distribution:
| Parameter | Cation Resin | Anion Resin |
|---|---|---|
| Particle Diameter | 630 ± 50 μm | 730 ± 50 μm |
| Uniformity Coefficient | ≤ 1.25 | ≤ 1.25 |
| < 300 μm | ≤ 0.1% | ≤ 0.3% |
| > 850 μm | ≤ 10.0% | ≤ 10.0% |
ℹ For additional particle size information, refer to Document No.: 45-D00954-en.
3. Performance and Operating Conditions
Ultrapure Water Quality Test Results:
-
Resistivity (UPW Rinse, 10-min): ≥ 18 MΩ·cm
-
Resistivity (Salt Challenge, 10-min): ≥ 18 MΩ·cm
-
ΔTOC (2h00 Rinse): ≤ 10 ppb C
Recommended Operating Conditions:
-
Temperature Range: 15 – 25°C (59 – 77°F)
-
pH Range (Stable): 0 – 14
-
Shipping Weight: 730 g/L
⚠ Operation at elevated temperatures (e.g., >60–70°C) may impact system purity and resin life. Consult DuPont technical representatives for details.
4. Hydraulic Characteristics
-
Pressure Drop: Estimated pressure drop as a function of service flow rate and water temperature is provided in Figure 1 (refer to original document for detailed curves).
-
Rinse Performance: Typical resistivity and TOC rinse curves as a function of rinse time are shown in Figure 2.
5. Safety and Regulatory Notes
-
WARNING: Strong oxidizing agents (e.g., nitric acid) may attack the resin under certain conditions, leading to degradation or violent reactions. Consult professionals before use.
-
Users are encouraged to review manufacturing processes and applications from health, safety, and environmental perspectives.
-
Refer to the latest Safety Data Sheet (SDS) before use and ensure compliance with local regulations.
For application cases, please visit: www.fgwater.com/Industries/
