DuPont™ XP77 IG UF Membrane - Advanced RO Pretreatment for Cost Savings
Подробная информация о продукте:
| Место происхождения: | Китай |
| Фирменное наименование: | Dupont |
| Сертификация: | CE |
| Номер модели: | Integratec ™ XP 77 IG (ранее SFP 2880XP) |
Оплата и доставка Условия:
| Количество мин заказа: | 1 ПК |
|---|---|
| Цена: | обсуждаемый |
| Упаковывая детали: | Стандартная экспортная упаковка |
| Время доставки: | 5-8 рабочих дней |
| Поставка способности: | 60000 единиц в месяц |
|
Подробная информация |
|||
| Эффективная мембранная площадь оборудования: | 8 дюймов | Расход оборудования: | 2,0–8,5 м Мед (8,8–37,6 галлонов в минуту) |
|---|---|---|---|
| Максимальное давление подачи оборудования: | 6,25 бар (90,65 фунтов на квадратный дюйм) при 20 ° C | Номинальный диаметр пор оборудования: | 0,03 мкм |
| Максимальное давление обратной промывки оборудования: | 2,5 бар (36 фунтов на квадратный дюйм) | Макс. рабочее ТМД оборудования: | 2.1 бар |
| Максимальный рабочий поток продувочного воздуха оборудования: | 12 нм3/час | Naocl (макс.) Этого модуля: | 2000 мг/л |
| Сертификаты: | ISO 9001, NSF, CE | Приложение: | Производство чистой воды |
| Преимущества: | Высокая эффективность · экономия энергии | ||
Характер продукции

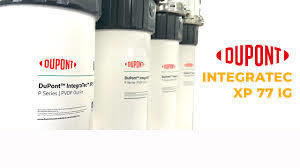

The DuPont™ XP 77 IG Ultrafiltration Membrane is a high-performance filtration solution engineered for excellence in diverse water treatment applications. Featuring an advanced PVDF (polyvinylidene fluoride) hollow fiber construction, this membrane delivers exceptional filtration accuracy, robust mechanical strength, and consistent performance. Its nominal pore size of 0.03 microns ensures the efficient removal of bacteria, viruses, colloids, and other suspended particles, producing water with turbidity ≤0.1 NTU and a Slit Density Index (SDI15) ≤2.5. This makes it an ideal pretreatment for reverse osmosis (RO) systems and other critical processes
| Attribute | Value |
|---|---|
| Effective membrane area | 8 inch |
| Flow rate per module | 2.0–8.5 m³/hr (8.8–37.6 gpm) |
| Max feed pressure | 6.25 bar (90.65 psi) at 20°C |
| Nominal pore diameter | 0.03 µm |
| Max backwash pressure | 2.5 bar (36 psi) |
| Max operating TMP | 2.1 bar |
| Max operating air scour flow | 12 nm3/hr |
| NaOCl (max.) | 2,000 mg/L |
| Certifications | ISO 9001, NSF, CE |
| Application | Pharma and Beverage |
The DuPont IntegraTec XP 77 IG ultrafiltration module delivers industry-leading performance for demanding industrial water treatment applications. Engineered with advanced PVDF hollow-fiber technology, it combines exceptional filtration efficiency with robust durability to reduce operational costs and system footprint.
- Superior Filtration Efficiency
- 0.03 µm nominal pore size: Effectively removes bacteria, viruses, colloids, and particulates
- High-flux design: 35% higher permeability than previous-generation modules
- Robust Construction & Reliability
- PVDF hollow-fiber membrane: Exceptional mechanical strength and chemical resistance (pH 2-11)
- U-PVC housing: Eliminates the need for external pressure vessels
- Optimized Operational Economics
- Outside-in flow configuration: Tolerates feedwater with high suspended solids
- Innovative end-cap design: Simplifies piping and saves space
| Model | Type | Membrane Area (m²/ft²) | Module Volume (Liters/Gallons) | Weight (Kg/lbs) |
|---|---|---|---|---|
| XP77 IG | Industrial | 77 / 829 | 39 / 10.3 | 61/100 (empty) 135/220 (water filled) |
| XP77 | NSF/ANSI 61 and 419 | 77 / 829 | 39 / 10.3 | 61/100 (empty) 135/220 (water filled) |
| Parameter | SI Units | US Units |
|---|---|---|
| Filtrate Flux @ 25ºC | 40-110 l/m2/hr | 24-65 gfd |
| Flow range | 2.0 - 8.5 m3/hr | 8.8 - 37.4 gpm |
| Temperature | 1-40ºC | 34-104ºF |
| Max. inlet module pressure (@ 20ºC) | 6.25 bar | 90.65 psi |
| Max. operating TMP | 2.1 bar | 30.5 psi |
| Max operating air scour flow | 12 nm3/hr | 7.1 scfm |
| Max backwash pressure | 2.5 bar | 36 psi |
| Operating pH | 2-11 | |
| NaOCl (max.) | 2,000 mg/L | |
| Particle size (max.) | 300 µm | |
| Flow configuration | Outside in, dead end flow | |
