DuPont™ SFP-2660 UF Module, 33 m² PVDF Membrane for Compact Water Pretreatment
Подробная информация о продукте:
| Место происхождения: | Китай |
| Фирменное наименование: | Dupont |
| Сертификация: | CE |
| Номер модели: | SFP-2660 |
Оплата и доставка Условия:
| Количество мин заказа: | 1 ПК |
|---|---|
| Цена: | обсуждаемый |
| Упаковывая детали: | Стандартная экспортная упаковка |
| Время доставки: | 5-8 рабочих дней |
| Условия оплаты: | Т/Т |
| Поставка способности: | 60000 единиц в месяц |
|
Подробная информация |
|||
| Площадь мембраны этого компонента: | 33 м² | Номинальный диаметр пор этого компонента: | 0,03 мкм |
|---|---|---|---|
| Мембрана Рабочее давление этого компонента: | 0,35 МПа | Мембрана Диапазон расхода этого компонента: | 1.3 - 4,0 м3/час |
| Точность фильтрации этого компонента: | 0,01-0,1 мкм | Метод фильтрации этого компонента: | Внешнее давление |
| Температура: | 1-40ºC | Размер частицы мембраны (макс.): | 300 мкл |
| Максимальное давление отмывания мембраны этой модели: | 2,5 бар | TSS (максимум) данной модели: | 100 мг/л |
| Основной материал данной модели: | PVDF | Преимущества: | Эффективность высокого потока · надежная долговечность |
| Приложение: | Предварительная обработка ， жесткие воды | ||
| Выделить: | DuPont SFP-2660 UF membrane module,PVDF membrane water pretreatment,compact UF module 33 m² |
||
Характер продукции
The Dupont™ SFP-2660 is a compact, high-performance ultrafiltration (UF) module designed for efficient water pretreatment. Utilizing hydrophilic PVDF hollow fiber membranes with a 0.03-micron pore size, it effectively removes bacteria, viruses, colloids, and suspended solids, protecting sensitive downstream equipment such as reverse osmosis (RO) systems.
Ideal for small to mid-size systems with capacities up to 50 m³/h, its 6-inch diameter and 33 m² membrane area enable a space-saving footprint without sacrificing performance. The outside-in flow configuration offers high tolerance to varying feed water quality, reducing pretreatment needs.
- 0.03 μm Nominal Pore Size - Effectively removes bacteria, viruses, colloids, and suspended solids for high-purity water production.
- High Chemical Resistance - Tolerates pH 2-11 (operating) and up to 2,000 ppm NaOCl for robust cleaning.
- Outer-Pressure (Out-to-In) Design - Handles higher TSS (Total Suspended Solids) levels (up to 100 mg/L) with reduced pretreatment needs.
- High Flux & Low Energy Consumption - Optimized for 50 m³/hr (220 gpm) systems, ensuring cost-effective operation.
- Compact 6-Inch Diameter, 60-Inch Length - Ideal for space-constrained installations while maximizing membrane area.
- Wastewater Reuse (Industrial & Municipal)
- RO/NF Pretreatment (Seawater & Brackish Water Desalination)
- Drinking Water Purification (Pathogen & Turbidity Removal)
- Electronics & Power Plant Process Water
| Attribute | Value |
|---|---|
| Membrane area of 2660 | 33m² |
| Nominal pore diameter of 2660 | 0.03 µm |
| Module Membrane Operating pressure of 2660 | 0.35MPa |
| 2660 model Membrane Flow range | 1.3 – 4.0 m3/hr |
| Filtration accuracy of model 2660 | 0.01-0.1µm |
| Filter method | External pressure |
| Temperature | 1-40ºC |
| Membrane Particle size (max.) | 300 µ |
| Membrane Max backwash pressure of this model | 2.5 bar |
| TSS (max.) of this model | 100 mg/L |
| Main Material of this model | PVDF |
| Model | Type | Part # | m² | ft² | Liters | Gallons | Kg | lbs |
|---|---|---|---|---|---|---|---|---|
| SFP-2660 | Pretreatment | 280931 | 33 | 355 | 16 | 4.2 | 25/41 | 55/90 |
| SFD-2660 | NSF/ANSI 61 Drinking water | 324166 | 33 | 355 | 16 | 4.2 | 25/41 | 55/90 |
| Parameter | SI units | US units |
|---|---|---|
| Filtrate Flux @ 25ºC | 40-120 l/m2/hr | 24-70 gfd |
| Flow range | 1.3 - 4.0 m3/hr | 5.9 - 17.3 gpm |
| Temperature | 1-40ºC | 34-104ºF |
| Max. inlet module pressure (@ 20ºC) | 6.25 bar | 93.75 psi |
| Max. operating TMP | 2.1 bar | 30 psi |
| Max operating air scour flow | 12 nm3/hr | 7.1 scfm |
| Max backwash pressure | 2.5 bar | 36 psi |
| Operating pH | 2-11 | |
| NaOCl (max.) | 2,000 mg/L | |
| TSS (max.) | 100 mg/L | |
| Turbidity (max.) | 300 ntu | |
| Particle size (max.) | 300 µ | |

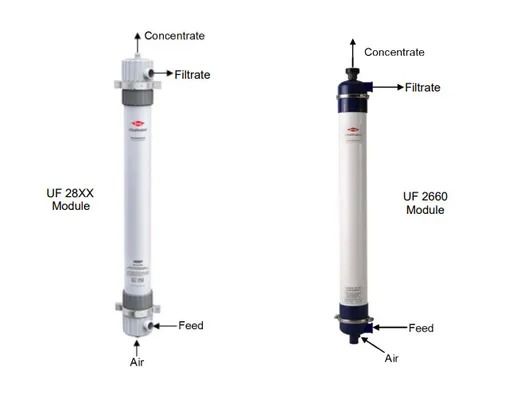

| Flow configuration | Outside in, dead end flow | |
| Expected filtrate turbidity | ≤0.1 NTU | |
| Expected filtrate SDI | ≤2.5 | |
Avoid any abrupt pressure variations during start-up, shutdown, cleaning or other sequences to prevent possible membrane damage. Flush the UF system to remove shipping solution prior to start-up. Remove residual air from the system prior to start up. Manually start the equipment. Target a permeate flow of 60% of design during initial operations. Depending on the application, permeate obtained from initial operations should be discarded. Please refer to the product technical manual.
If operating limits and guidelines given in this bulletin are not strictly followed, the limited warranty will be null and void. To prevent biological growth during system shutdowns, it is recommended that preservative solution be injected into the membrane modules.
NSF/ANSI 61 certified drinking water modules require specific conditioning procedures prior to producing potable water. Please refer to the product technical manual flushing section for specific procedures. Drinking water modules may be subjected to additional regulatory restrictions in some countries. Please check local regulatory guidelines and application status before use and sale.
| Place of Origin: | China |
| Brand Name: | DOW(Acquired by DuPont) |
| Certification: | CE |
| Model Number: | SFD-2660 |
| Minimum Order Quantity: | 1 pc |
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5-8 work days |
| Supply Ability: | 60000 Unit/Units per Month |
