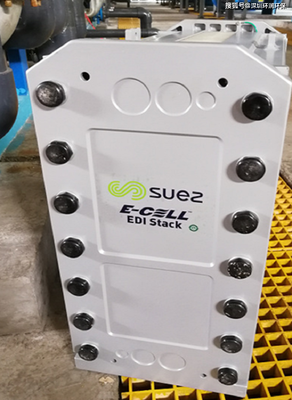

Veolia E-Cell MK-9 EDI Stack (formerly MK-7) For Large-Scale Industrial Ultrapure Water Production
Подробная информация о продукте:
| Место происхождения: | Китай |
| Фирменное наименование: | VEOLIA |
| Сертификация: | CE |
| Номер модели: | МК-9 (ранее МК-7) |
| Документ: | Veolia EDI catalog.pdf |
Оплата и доставка Условия:
| Количество мин заказа: | 1 ПК |
|---|---|
| Цена: | обсуждаемый |
| Упаковывая детали: | Стандартная экспортная упаковка |
| Время доставки: | 5-8 рабочих дней |
| Условия оплаты: | , Т/т |
| Поставка способности: | 60000 единиц в месяц |
|
Подробная информация |
|||
| Имя: | MK-9 | Размеры стека MK-9 (см как ширина x высота x глубина): | 30 x 61 x 74 |
|---|---|---|---|
| Общее количество обменных анионов (ppm в пересчете на CaCO3) стека МК-9.: | <13 | Проводимость (мкСм/см) батареи МК-9: | <22 |
| pH стека МК-9: | 4-11 | Температура (°С) батареи МК-9: | 4.4-40 |
| Твердость (ppm как caco3): | <1.0 | Кремнезем (ppm as sio2): | <1.0 |
| Типичное производство воды (M3 /HR): | 6.0-10.0 | Восстановление: | До 97% |
| Напряжение: | 0–400 VDC | Типичные новые приложения: | Солнечная фотоэлектрика и зеленый водород |
Характер продукции
The Veolia E-Cell MK-9 EDI Stack (formerly MK-7) represents the high-capacity solution in Veolia's EDI portfolio, delivering 6.0-10.0 m³/hr of continuous ultrapure water for demanding industrial applications. With its enhanced flow capacity and proven reliability, this stack is specifically engineered for large-scale operations where consistent high-purity water production is critical.
Featuring the same advanced electrodeionization technology as other E-Cell models, the MK-9 eliminates chemical regeneration while maintaining superior product water quality (>16 MOhm-cm resistivity). Its robust construction and optimized hydraulic design ensure stable performance in challenging operating conditions across power generation, semiconductor manufacturing, and large-scale industrial water treatment plants.
Key Advantages:
-
High-flow capacity: 6.0-10.0 m³/hr production range
-
Proven reliability in large-scale industrial applications
-
Zero chemical consumption for regeneration
-
Consistent high-purity output (>16 MOhm-cm)
-
Direct upgrade path for existing MK-7 installations
Applications:
-
Semiconductor and microelectronics manufacturing
-
Power plant boiler feed water systems
-
Large-scale pharmaceutical water systems
-
Solar panel production and green hydrogen applications
Choose the MK-9 for your high-volume ultrapure water needs and benefit from Veolia's industry-leading EDI technology with enhanced capacity and reliability. Contact us for detailed technical specifications and project support.
| Attribute | Value |
|---|---|
| Stack Name | MK-9 |
| Dimensions (cm) | 30 x 61 x 74 (W x H x D) |
| Total exchangeable anions (ppm as CaCO3) | <13 |
| Conductivity (μS/cm) | <22 |
| pH Range | 4-11 |
| Temperature Range (°C) | 4.4-40 |
| Hardness (ppm as CaCO3) | <1.0 |
| Silica (ppm as SiO2) | <1.0 |
| Typical designed water production (m3/hr) | 6.0-10.0 |
| Recovery Rate | Up to 97% |
| Voltage | 0–400 VDC |
| Typical Applications | Solar Photovoltaics And Green Hydrogen |
| Parameter | Value |
|---|---|
| Brand | Veolia EDI |
| Inlet Pressure | 6.9 bar (100 psi) |
| Max Temperature | 40°C (104°F) |
| Pressure Drop | 2.4-3.4 bar (35-50 psi) |
| Flow Rate | 8.0m3/h |
| Shipping Weight | 165 kg (364 lbs) |
- Continuously produces ultrapure water of mixed bed water quality
- No acid and base regeneration required
- Guaranteed leak-proof design
- Simplified system design with no brine injection or concentrated water circulation
- Power generation (NOx, boiler feed water)
- Electronics manufacturing
- General industrial applications
- Pharmaceutical & Biotech (WFI pre-treatment)
- Microelectronics & Semiconductor Manufacturing
- Laboratory Ultra-Pure Water Systems
