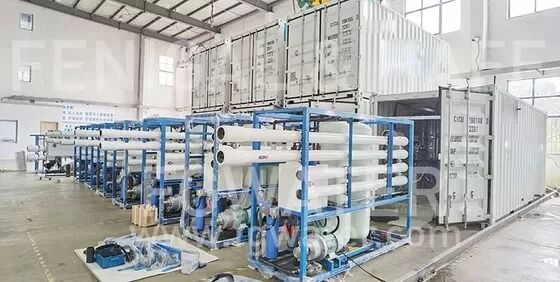

1,500 m³/day Desal BWC1500 Ultra‑Low Energy Industrial BWRO For The Green Choice for Mega‑Projects
Подробная информация о продукте:
| Место происхождения: | КИТАЙ |
| Фирменное наименование: | FG Water Technologies |
| Сертификация: | CE |
| Номер модели: | БВК500 |
Оплата и доставка Условия:
| Количество мин заказа: | 1 |
|---|---|
| Упаковывая детали: | Стандартный |
| Время доставки: | 30 рабочих дней |
| Условия оплаты: | Т/Т |
|
Подробная информация |
|||
| Номинальная скорость восстановления: | 70% | Номинальный поток продукта: | 85 м³/ч |
|---|---|---|---|
| Кол-во мембраны обратного осмоса: | 108 ПК | Размер контейнера: | 40+40 футов |
| Номинальная мощность: | 99,4 кВт | Энергопотребление: | 1,05 кВтч/м³ |
Характер продукции
500 M³/day Desal BWC500 – High‑Efficiency Containerized BWRO

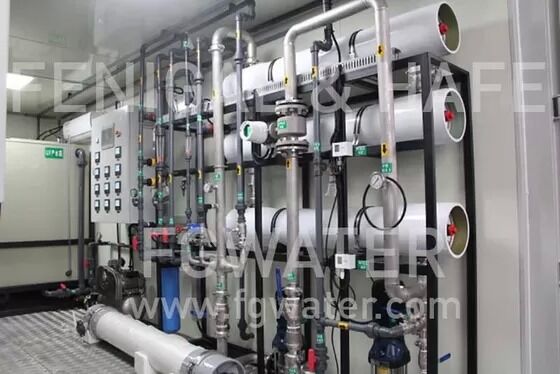

For projects that demand both massive output and minimal environmental impact, the BWC1500 sets a new benchmark. Producing 65 m³/h (1,500 m³/day) with an astonishing energy consumption of just 0.99 kWh/m³ – the lowest in the series – this system packs 108 RO membranes into two 40‑ft containers. Advanced energy recovery and IE3 motors are standard, not options. Reinforced container structure and premium coatings ensure decades of service in harsh coastal or desert environments. The BWC1500 is the preferred solution for megacities, petrochemical complexes, and national irrigation schemes.
Key Specifications
| Parameter | Unit | Value |
|---|---|---|
| Rated Product Flow | m³/h | 65 |
| L/s | 18.06 | |
| Rated Recovery Rate | % | 70 |
| Rated Feed Flow | m³/h | 92.86 |
| Max System Pressure | barg | 20 |
| RO Membrane Spec | inch | 8,010 |
| RO Membrane Qty | pcs | 108 |
| Dry Weight | ton | 26+6 |
| Container Size | ft | 40 + 40 |
| Rated Power | kW | 89.4 |
| Energy Consumption | kWh/m³ | 0.99 |
| Installed Power | kW | 138.7 |
| Power Input | – | 3PH, 380V ±10%, 50Hz |
System Features
-
World‑class efficiency – under 1 kWh/m³, saving hundreds of thousands of dollars yearly.
-
108 membranes – maximise flux while minimising fouling.
-
Standard energy recovery – not an add‑on, ensuring guaranteed low running costs.
-
Seismic‑rated container – reinforced for extreme weather and seismic zones.
Applications
Megacity supplementary water, petrochemical plants, national‑scale irrigation, large desalination hubs.
